Description

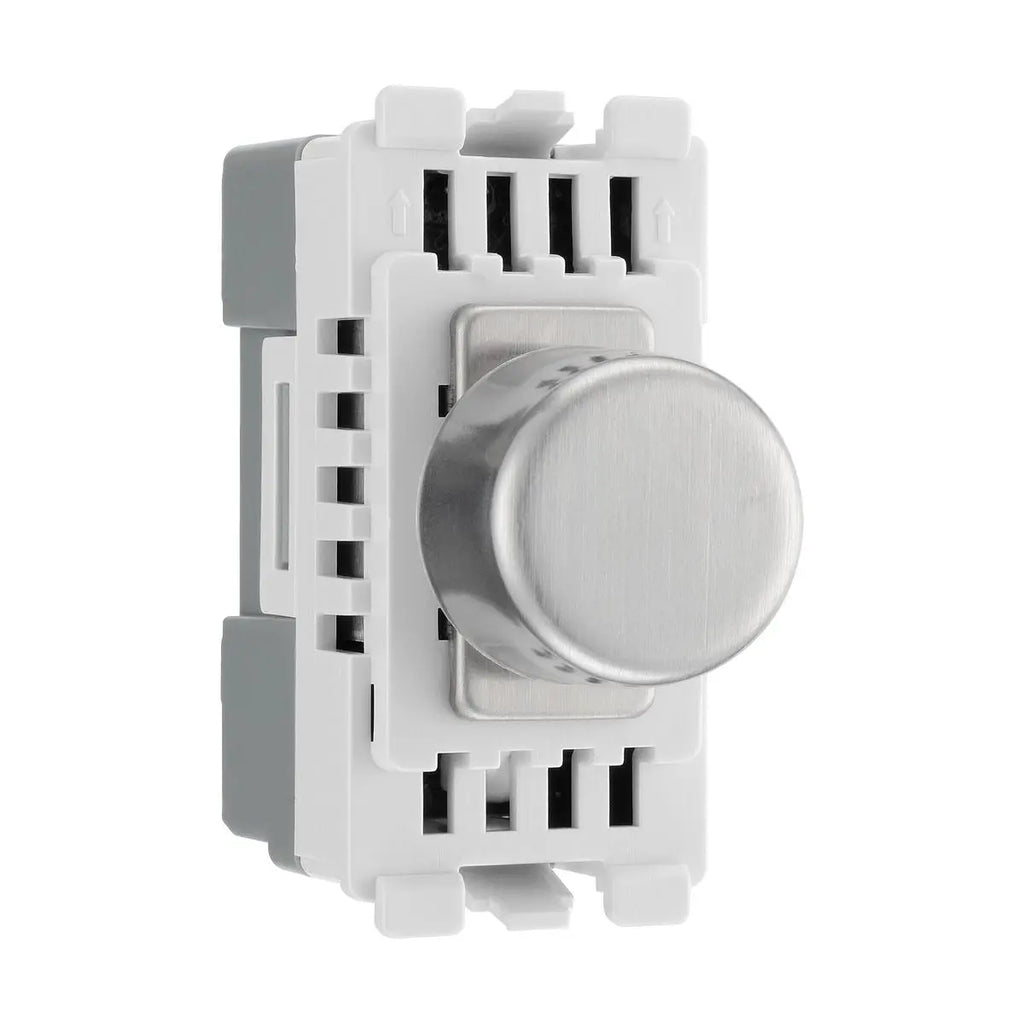

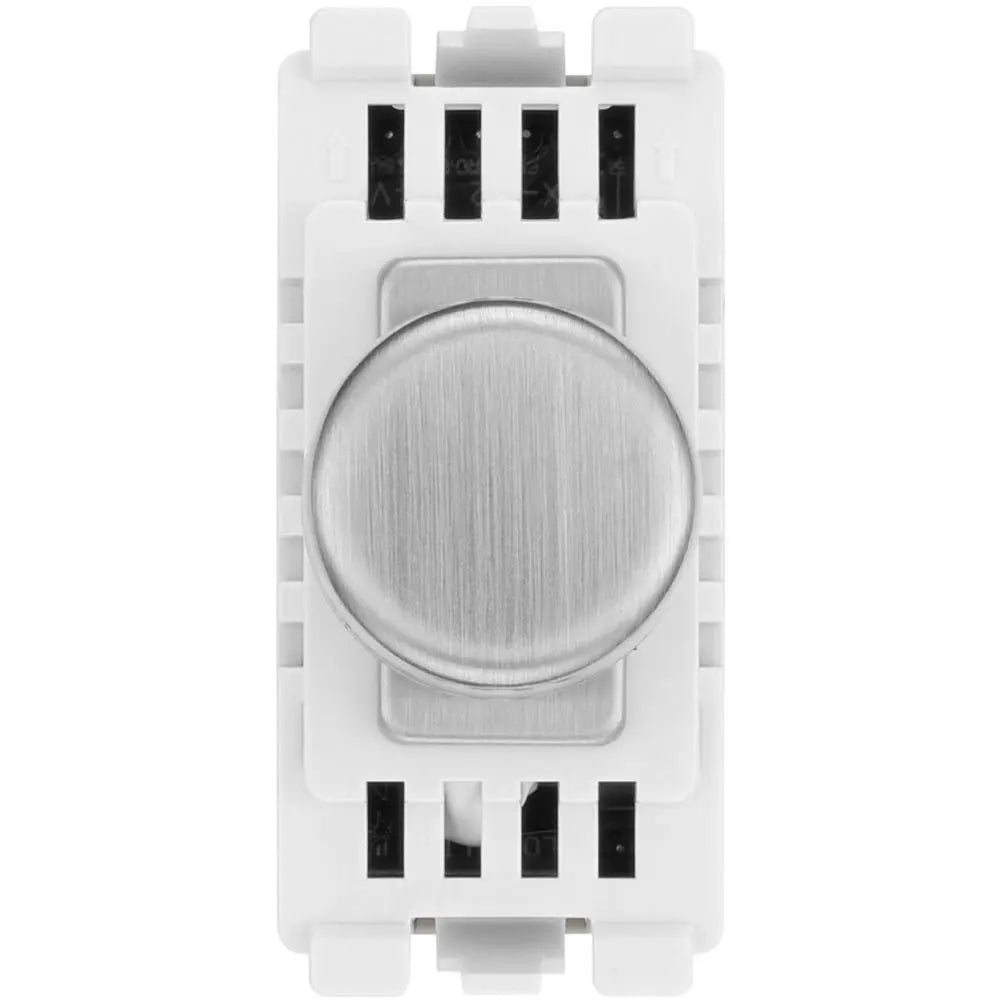

The BG Electrical Nexus Grid RBSDTR is a brushed stainless-steel 2-way trailing edge dimmer module rated at 200W. Suitable for LED, halogen, CFL and incandescent lamps, the RBSDTR has a soft-start feature to extend lamp life, silent operation, overload protection, and lower-wattage support to prevent flicker. Easily fitted into a Nexus Grid frame, the brushed steel finish has a sleek, modern look with light lacquering to reduce fingerprints.
- Dimmable LED load: 5-100W
- Tungsten/Incandescent load: 5-200W
- Halogen load: 20-200W
- Dimmable compact fluorescent (CFL) load: 5-100W
- Minimum mounting box depth: 25mm
- Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
- Manufactured to BS EN 60669-2-1
- Brushed Steel finish
